Item No :
Power On R-GOrder(MOQ) :
100 pieces. Accept one piece at sample price.Payment :
Paypal / TT / Western UnionProduct Origin :
ChinaColor :
WhiteShipping Port :
Ningbo, Shenzhen, ShanghaiLead Time :

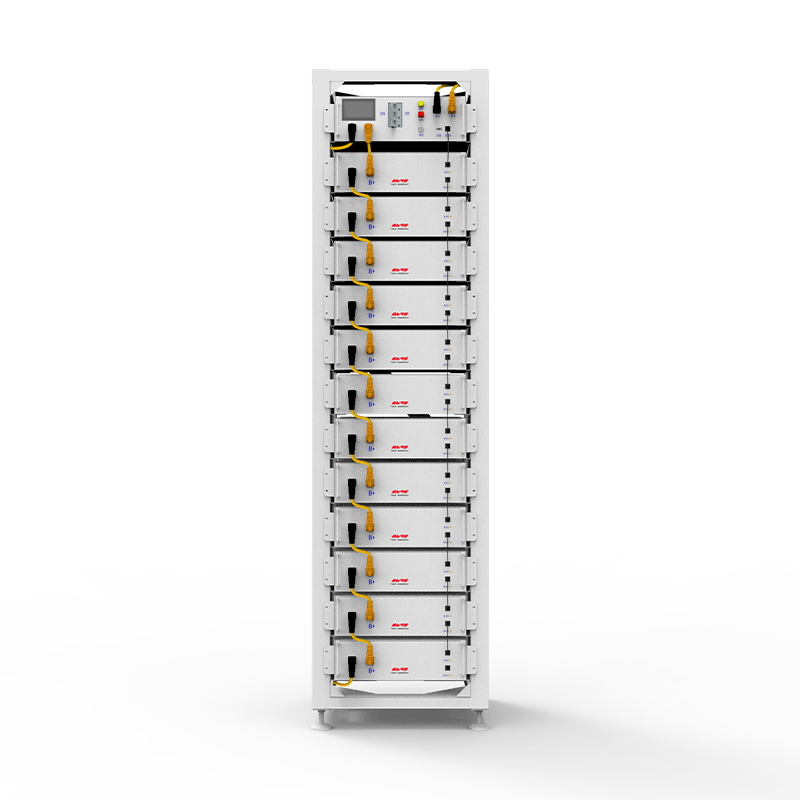

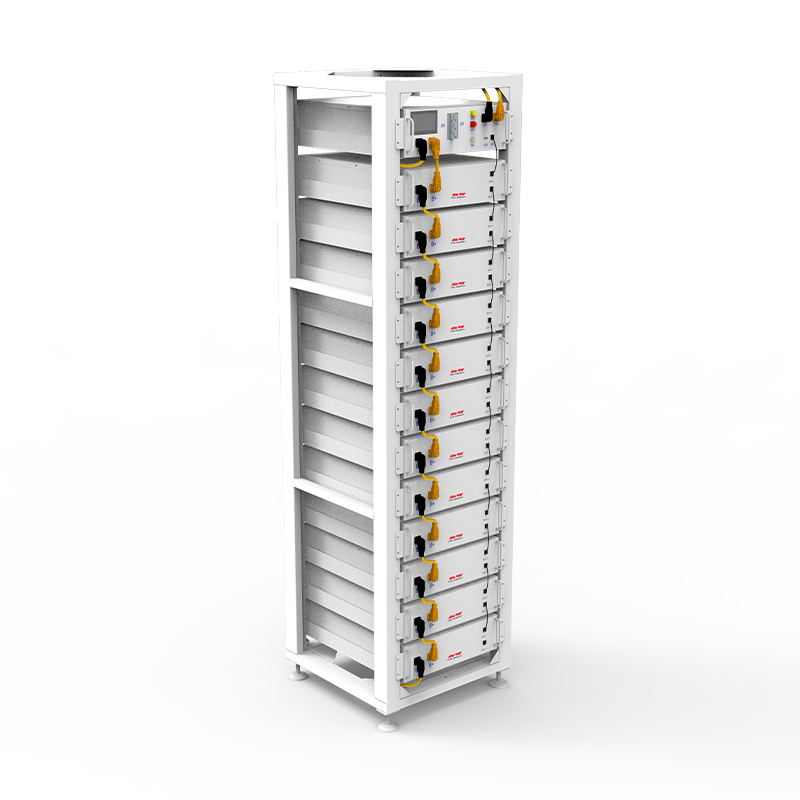

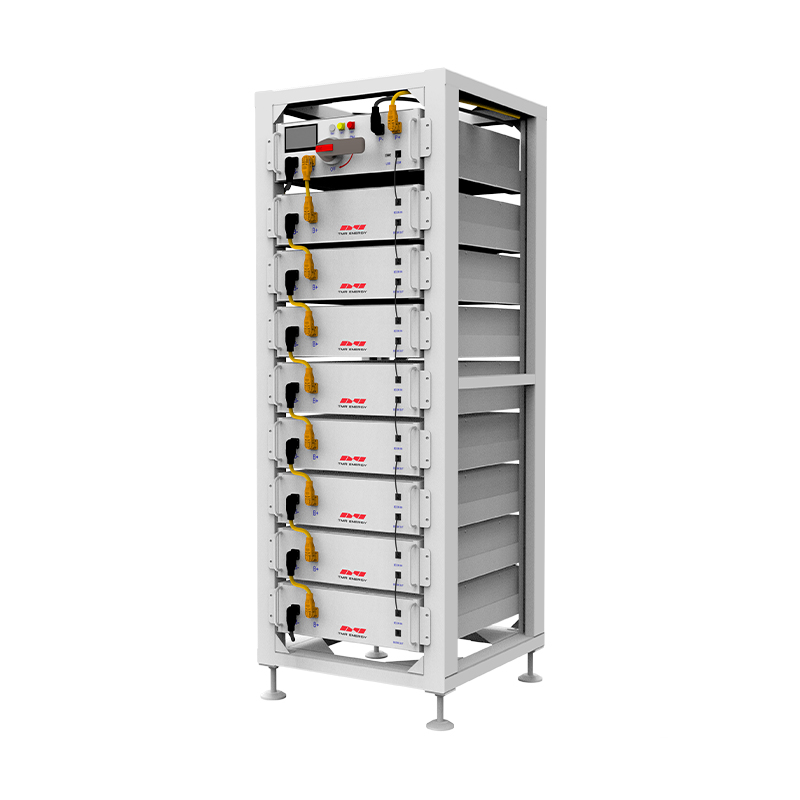

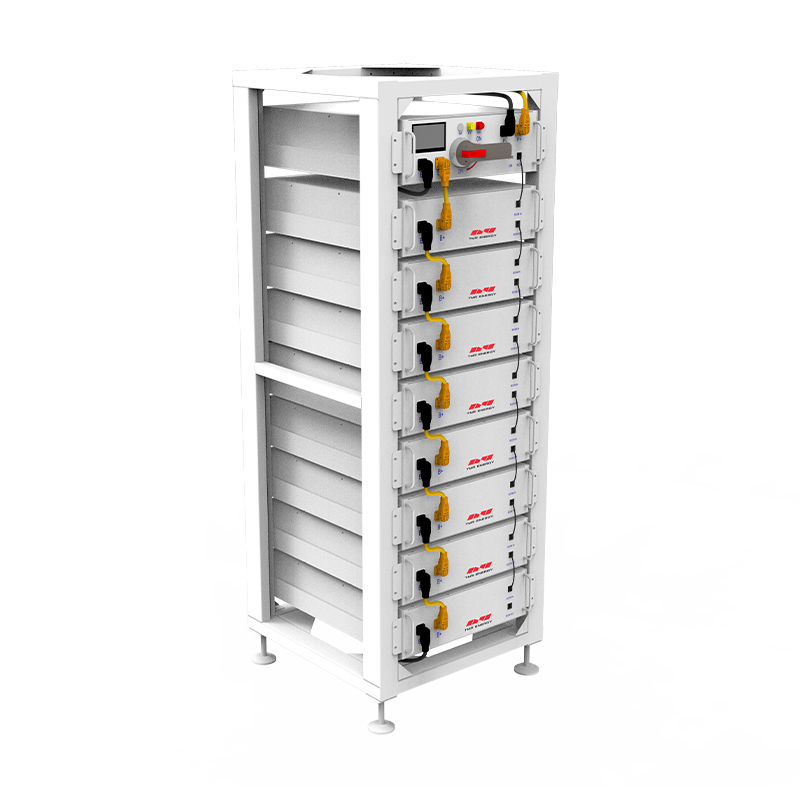

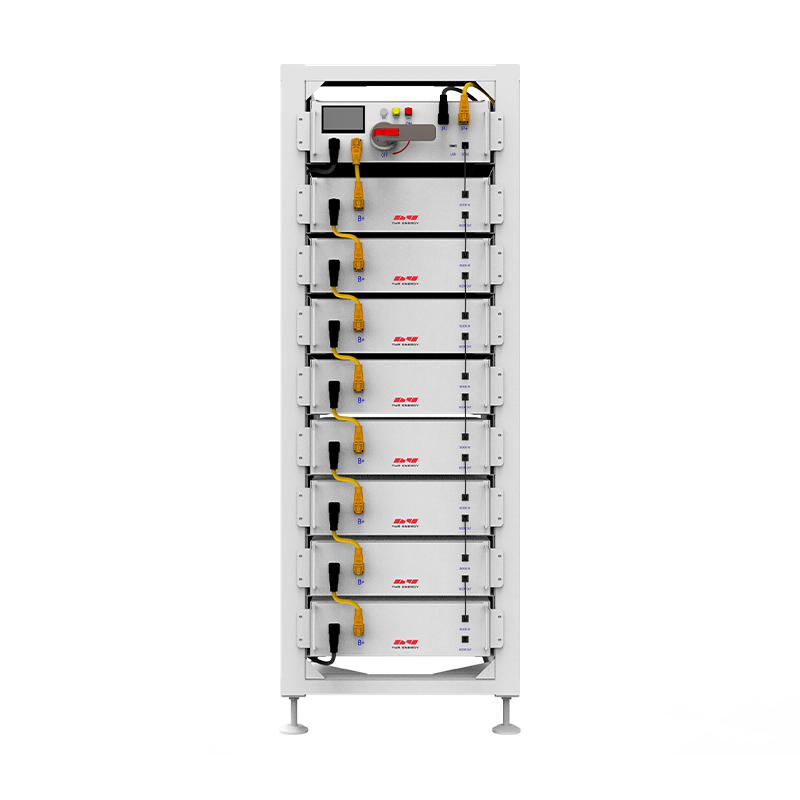

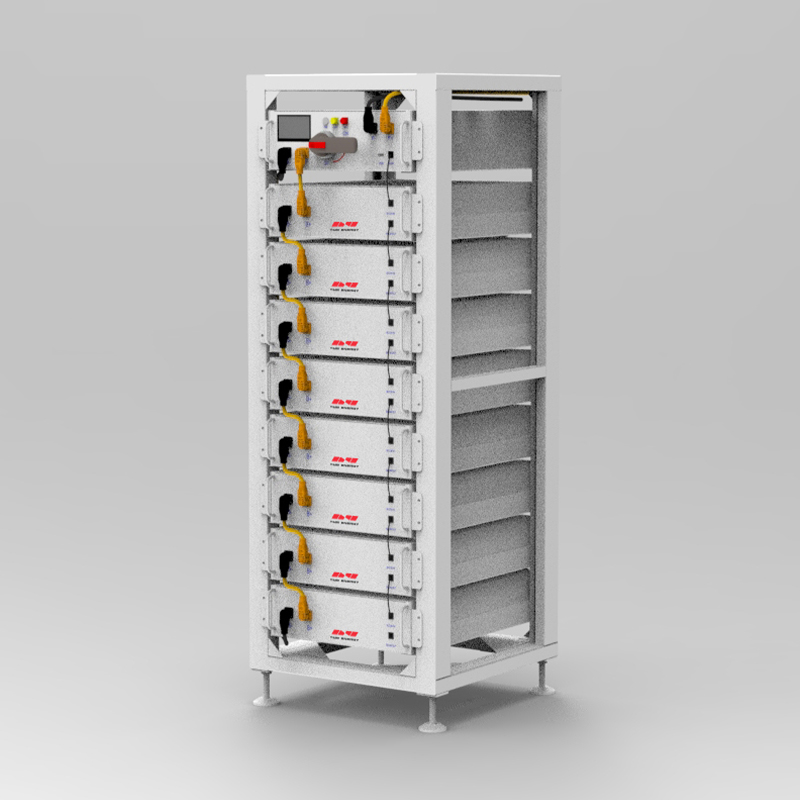

25 - 45 daysThe high voltage 3U energy storage lithium battery is a versatile, reliable and cost-effective solution for storing energy. With its high voltage and 3U size, it offers a compact and efficient way to store energy without sacrificing power. Its long-lasting battery life ensures that it can be used in a variety of applications, from residential and commercial to industrial and automotive. Additionally, its wide temperature range and low self-discharge rate make it an ideal choice for those looking to save money and reduce their environmental impact. Invest in the high voltage 3U energy storage lithium battery today and reap the benefits of a reliable, cost-effective energy storage solution.
◆ Convenient

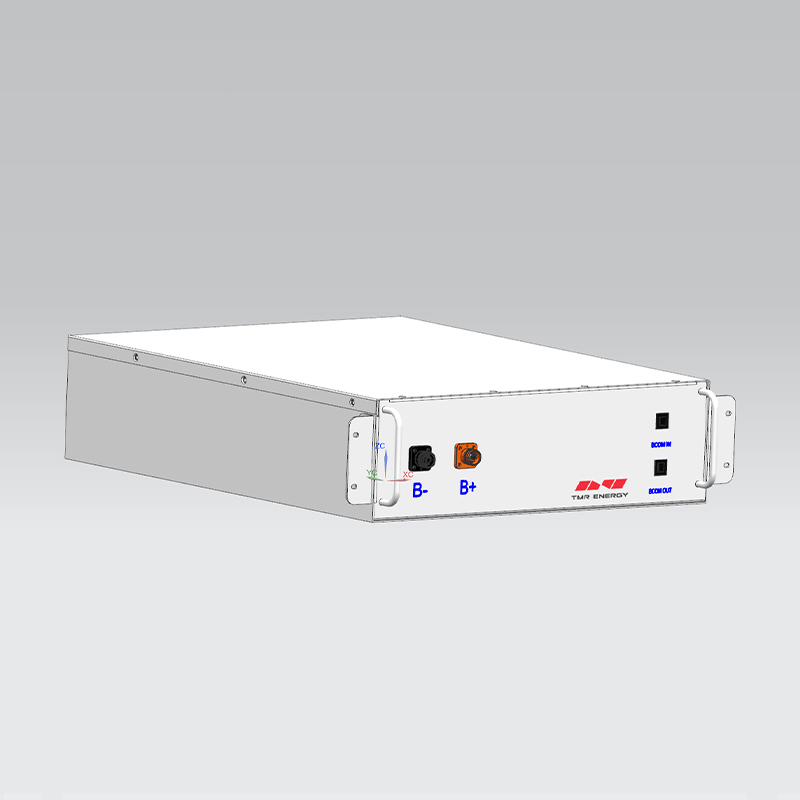

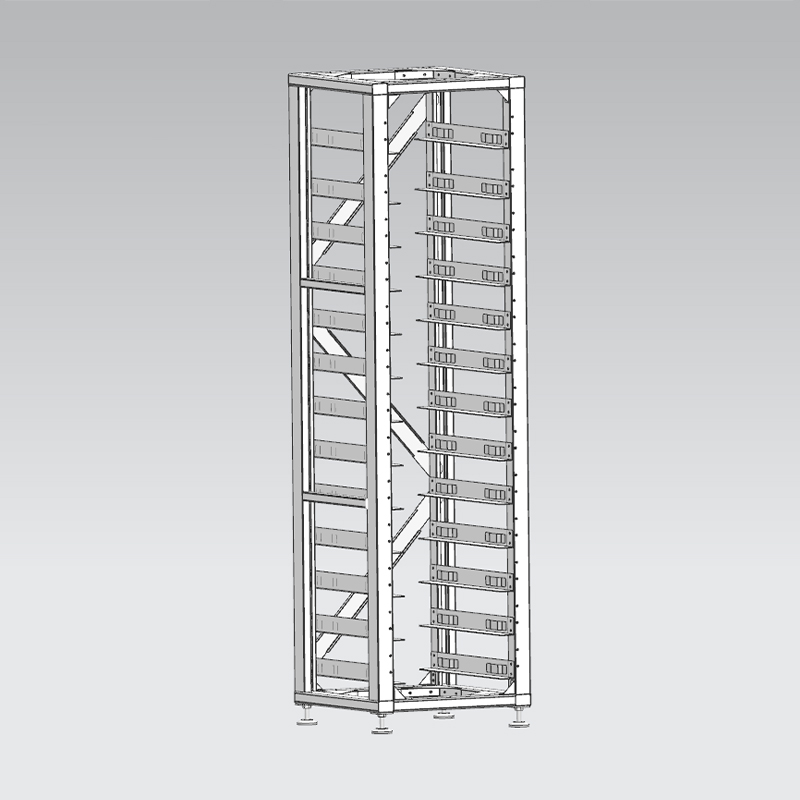

Quick installation standard of 19-inch embedded designed module is comfortable for intallation and maintenance.
◆ Safe and reliable
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self- discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
◆ Intelligent BMS
It has protection functions including over-discharge, over- charge, over- current and over-high or low temperaturei The system can automatically manage charge and discharge state and balance current and voltage of each cell.
◆ Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly.
◆ Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and poweri Support USB upgrade, wifi upgrade(optional), remote up grade(Compatible with Deye inverter)
◆ Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
Model | PR-G | |||
Main Parameter | ||||
Cell Chemistry | LiFePO4 | |||
![]() ![]() |
5.12 | |||
Module Nominal Voltage(V) | 51.2 | |||
![]() |
100 | |||
Battery Module Qty in series (Optional) | 3 | 8 | 12 | |
(Min) | (Standard US Cluster) | (Standard EU Cluster) | ||
System Nominal Voltage(V) | 153.6 | 409.6 | 614.4 | |
System Operating Voltage(V) | 135~175 | 359~460 | 538~691 | |
System Energy(kWh) | 15.36 | 40.96 | 61.44 | |
System Usable Energy(kWh) | 13.8 | 36.86 | 55.29 | |
Charge/Discharge² Current(A) | Recommend | 50 | ||
Nominal | 100 | |||
Peak Discharge (2mins, 25ºC) | 125 |
![]() |
Charge: 0~55/Discharge:-20~55 | ||

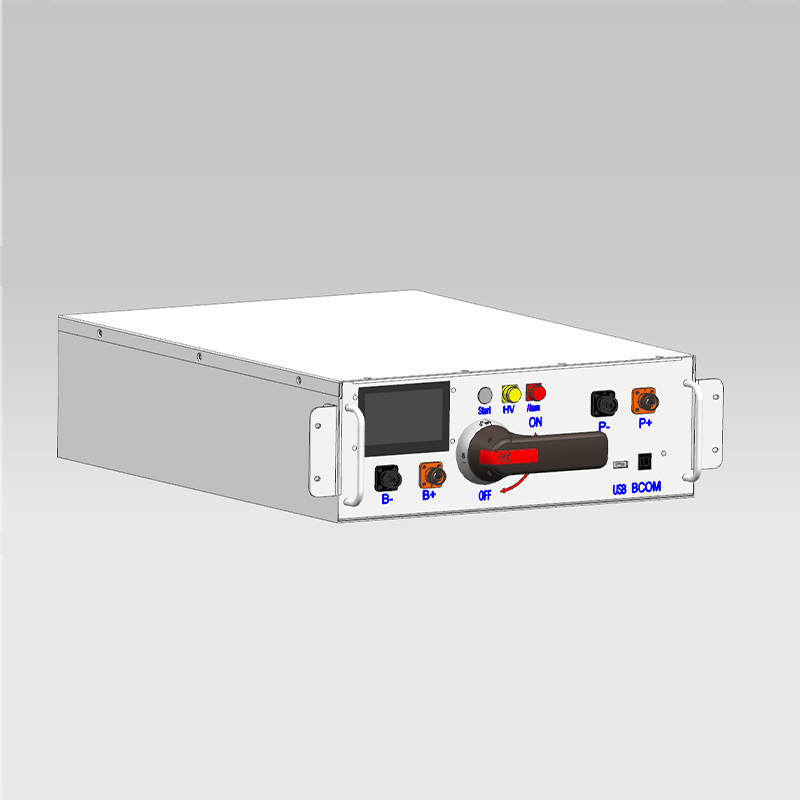

Status Indicator |
Yellow: Battery High Voltage Power On Red: Battery System Alarm |
||
![]() ![]() |
CAN2.0/RS485 | ||
![]() ![]() |
5~85%RH | ||
Altitude | 2000m | ||
IP Rating of Enclosure | IP20 | ||
Dimension(W/D/H,mm) | 589*590*1640 | 589*590*2240 | |
Storage Temperature(ºC) | 0~35 | ||
![]() ![]() |

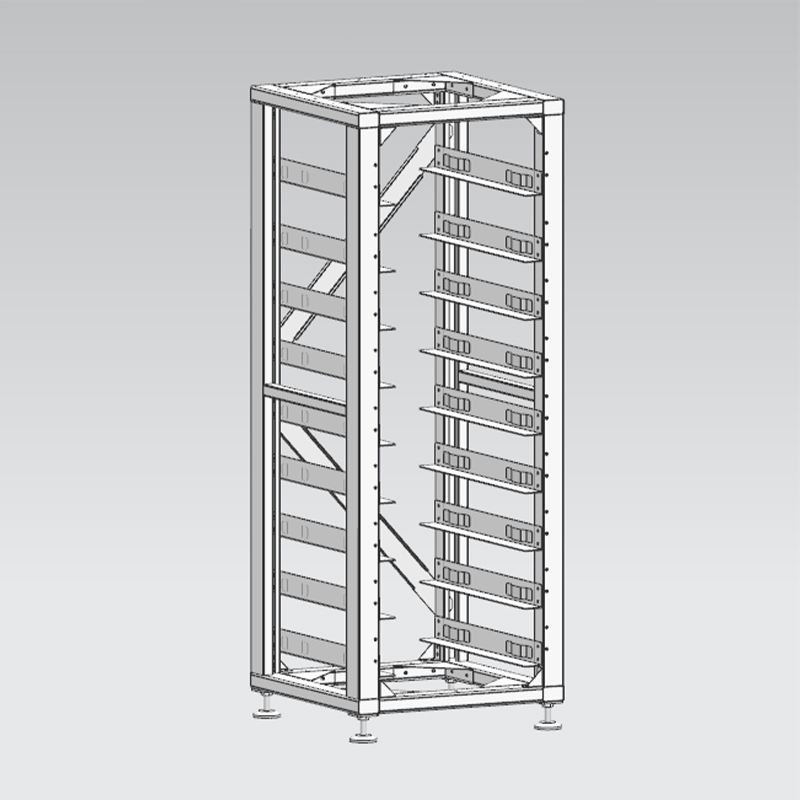

258 | 434 rack mounting | 628 |
![]() ![]() |
90% | ||
Cycle Life | 25±2ºC, 0.5C/0.5C, EOL70% 6000 | ||
Warranty³ | 10years | ||
Certification | CE/IEC62619/UL1973/UL9540A/UN38i3 |
Quality management system certificate

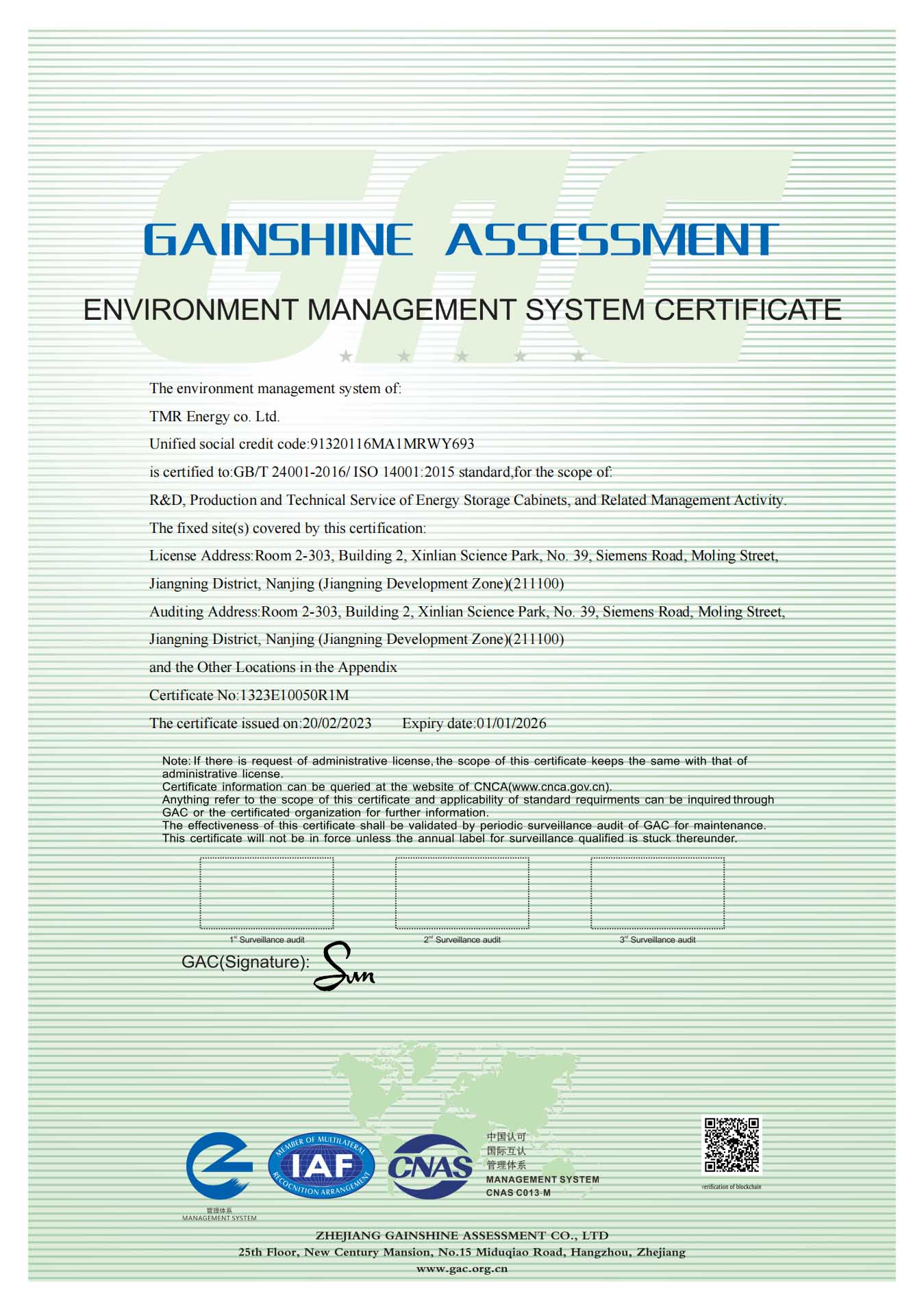

Environment Management System Certificate
