Item No :
PowerOn RW- 6Order(MOQ) :
100 pieces. Accept one piece at sample price.Payment :
Paypal / TT / Western UnionProduct Origin :
ChinaColor :
WhiteShipping Port :
Ningbo, Shanghai, ShenzhenLead Time :

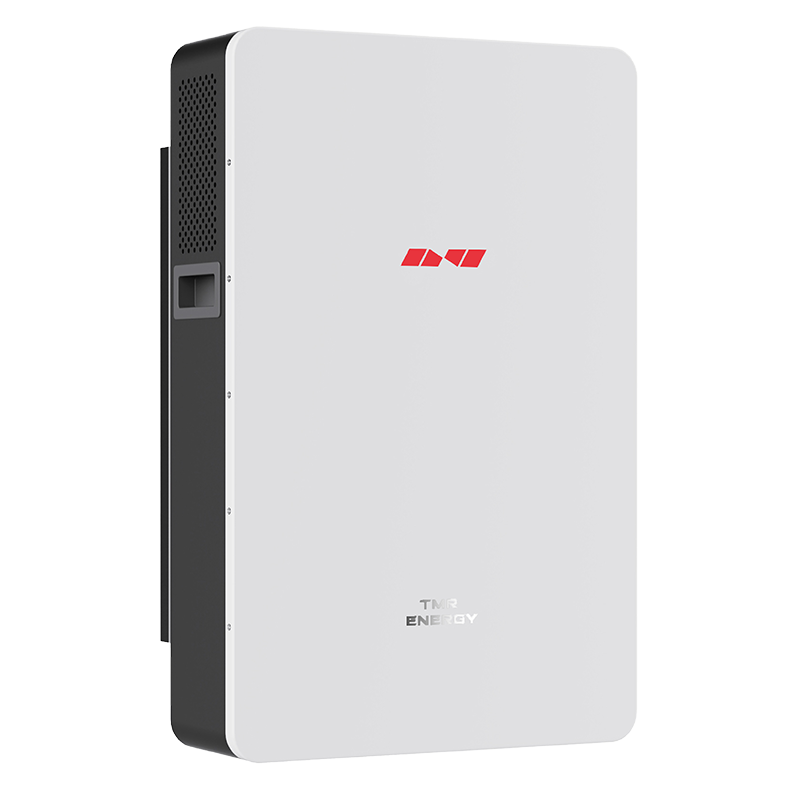

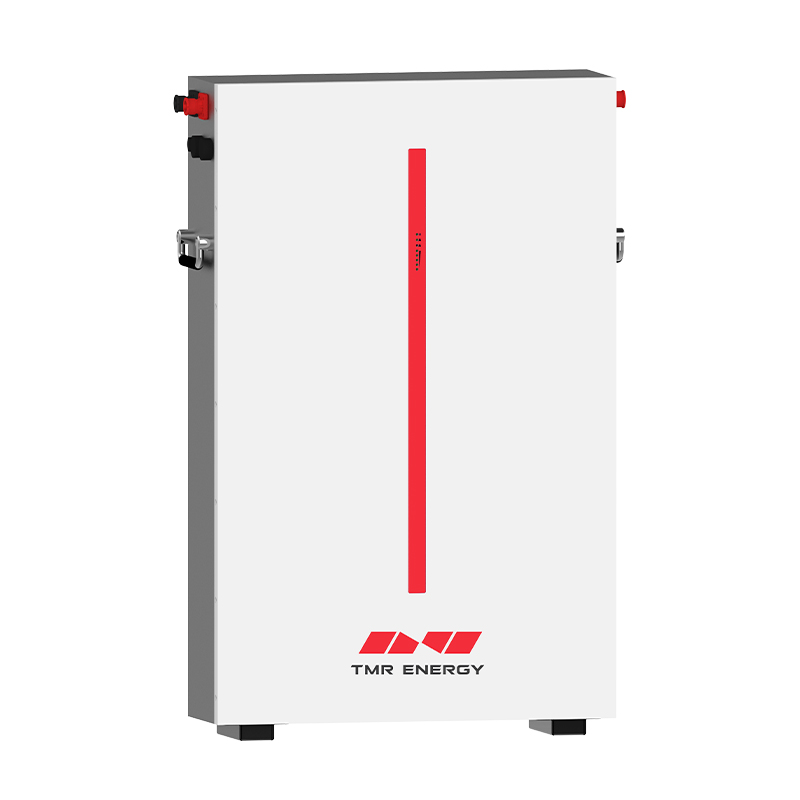

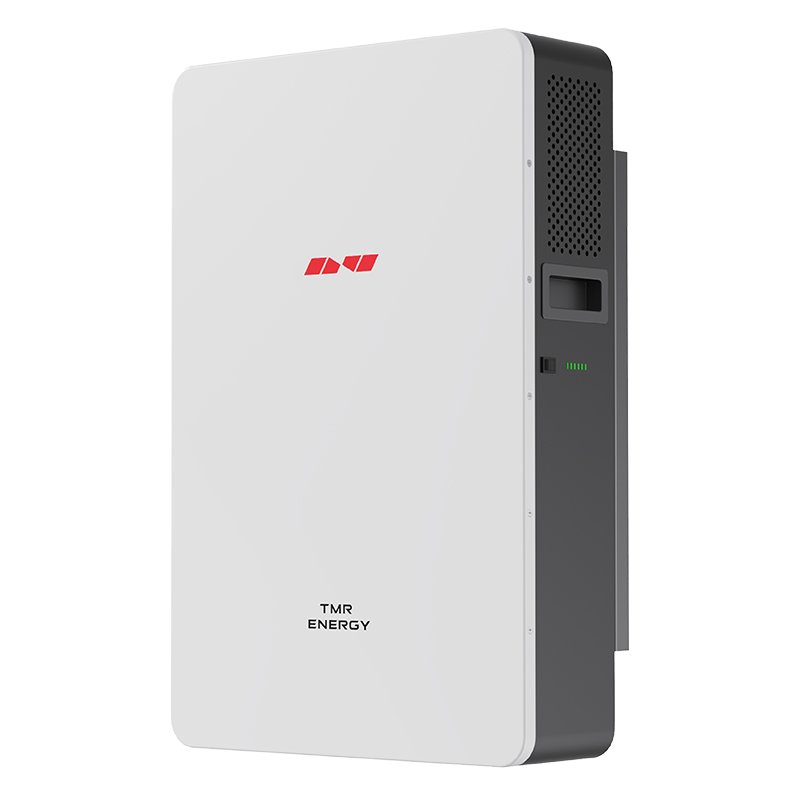

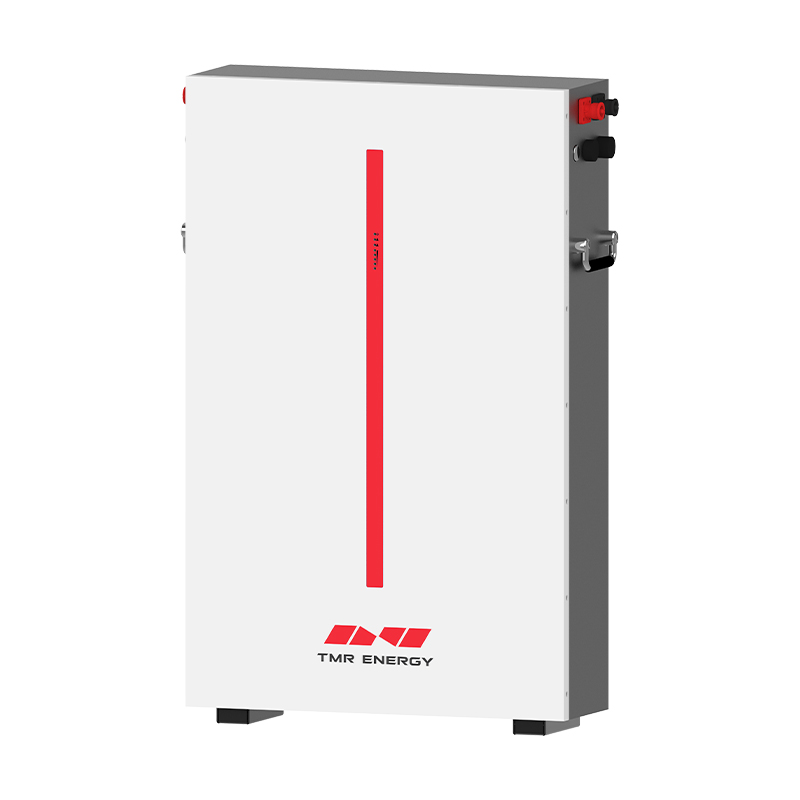

25 - 45 daysInstalling a battery used for solar panel system is becoming increasingly popular as a way to reduce energy costs and increase energy efficiency. Our low voltage wall mounted battery has many advantages over traditional lead-acid batteries, including a longer lifespan, higher energy density, minimal maintenance and lower cost. - TMRenergy designs and provides a wide range of low voltage wall mounted lithium batteries at factory price, which can meet the needs of home owners or buyers who engage in this business.
◆ Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-power density intelligent BMS, providing complete protection.
◆ Reliable
Support high discharge poweri IP65, natural cooling, wide temperature range: -20ºC to 55ºC.
◆ Flexible
Modular design, easy to expand, Maxi 32 units in parallel, Maxi capacity of 196kWhi Suited to residential and commercial applications for increasing the self- consumption ratio.
◆ Convenient
Battery module auto networking, Automatic IP addressing, easy maintenance, remotely monitoring and upgrade, support USB drive upgrade the fimware.
◆ Eco-Friendly
Use environmental protection materials, the whole module non-toxic, pollution-free.
◆ Wall-Mounted
Flat design, wall-mounted, saving installation space.
Specification:
Check out the paramater of low voltage wall mounted lithium battery 48V as follows. This can help you make smart sourcing.
Model |
PR-W6 |
|
Main Parameter |
|
|
Battery Chemistry |
LiFePO4 |
|
Capacity (Ah) |
120 |
|
Scalability |
Maxi32 pcs in Parallel(196kWh) |
|
Nominal Voltage(V) |
51.2 |
|
Operating Voltage(V) |
43.2~57.6 |
|
Energy (kWh) |
6.14 |
|
Usable Energy (kWh) [1] |
5.53 |
|
Charge/Discharge Current (A) |
Recommend [2] |
60 |
Maxi [2] |
100 |
|
Peak( 2mins, 25°C ) |
150 |
Other Parameter |
|
Recommend Depth of Discharge |
90% |
Dimension (W/H/D, mm) |
475*720*145(Without Base,depth of 161mm with Hanging Board) |
Weight Approximate(kg) |
58 |
Master LED Indicator |
5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting) |
IP Rating of Enclosure |
Charge:0~55ºC / Discharge:-20ºC~55ºC |
Operating Temperature |
IP65 |
Storage Temperature |
Charge: 0~55ºC / Discharge: -20ºC~55ºC |
Humidity |
5%~95% |
Altitude |
2000m |
Cycle Life |
6000(25ºC±2ºC,0.5C/0.5C,70%EOL) |
Installation |
Wall-Mounted, Floor-Mounted |
Communication Port |
CAN2.0, RS485 |
Warranty Period [3] |
10 years |
Energy Throughput [3] |
20MWh@70%EOL |
Certification |
UN38.3, IEC62619, CE,CEI 0-21 |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5c charge & discharge at 25ºC. System usable energy may vary due to system configuration parameters
[2] The current is affected by temperature and Soc
[3] The warranty is due whichever reached first of warranty period or life cycle power
Model |
Accessories |
RW-M6.1 Remark |
PR-W6-Hboard |
Battery Hanging Board (Included) |
Used for battery fixing on the wall |
PR-W6-Base |
Battery Support Base (Included) |
The Support base for battery floor-mounted |
WT-CCable |
Communication Cable (Included) |
Battery communication cable connect with hybrid inverter |
PR-W6-PCable |
DC Power Cable (Included) |
Battery power cable connect with hybrid inverter |
PR-W6-BCable |
Battery Parallel Cable (Optional) |
Battery power and communication parallel connection cable |

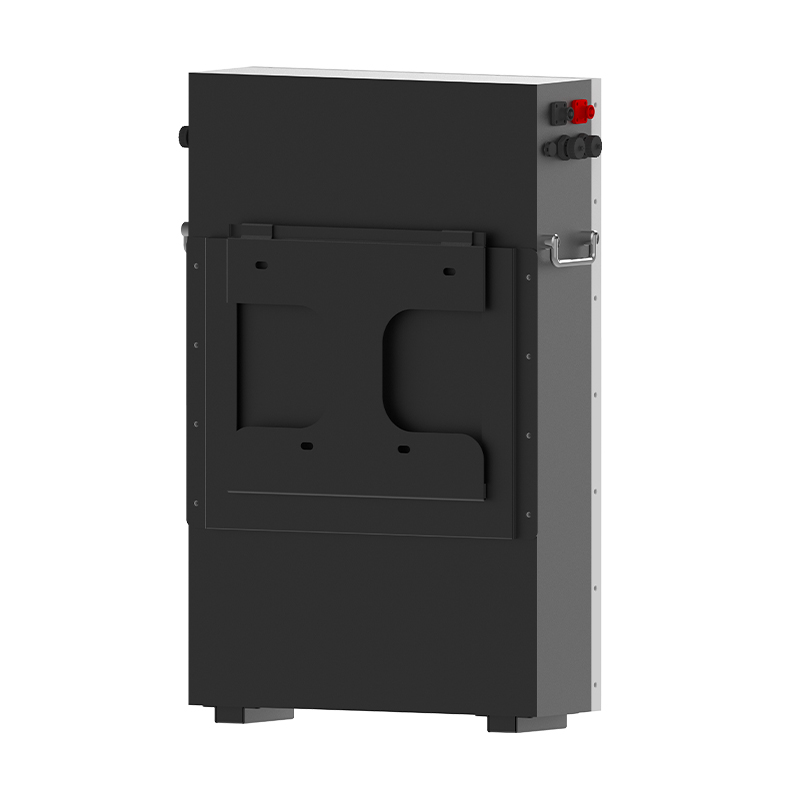

Model: PR-W6-Hboard
Details: 3kg(Appri)
Model: WT-CCable
Details: 3m RJ45 communication cable, one end has a waterproof terminal

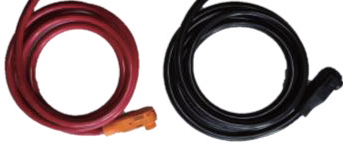

Model: PR-W6-PCable
Details: Pair of 4AW DC power cable connect with hybrid inverter, one end has a waterproof terminal. The cable length can be customized based on customer requirements, default length is 2000mm.

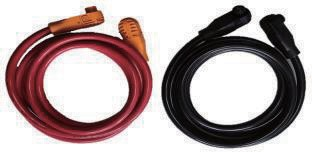

Model: PR - W6 - B cable
Details: Pair of 4AW Battery power cable and RJ45 communication cable for battery parallel. The cable length can be customized based on customer requirements, default length is 600mm.

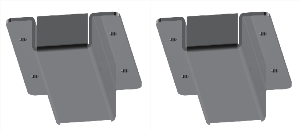

Model: PR-W6-Base
Details: Pair of battery support base. The Support Base for Battery Floor-mounted, height is 20mm.
1. High Energy Density: Wall mounted lithium battery has a high energy density, which means that it stores more energy in a smaller package. This makes it ideal for applications where space is limited, such as in a home or office.
2. Longer Lifespan: Wall mounted lithium battery has a longer lifespan than other types of batteries, which is due to its ability to handle more charge cycles. This means that it can be used for a longer period of time without needing to be replaced.
3. Low Maintenance: Wall mounted lithium battery is also low-maintenance, as it does not require regular maintenance or replacement. This makes it a great option for those who don't want to worry about battery maintenance.
4. Low Self-Discharge: Wall mounted lithium battery has a low self-discharge rate, which means that it can hold its charge better over time. This means that it will still have a charge when you need it most, making it a reliable option.
5. Eco-Friendly: Wall mounted lithium battery is also eco-friendly, as it does not contain any hazardous materials that can pollute the environment. This makes it a great choice for those who want to reduce their electricity.
FAQ:
How to calculate battery capacity for solar system?
1. Determine how much power you need: To calculate the battery capacity for your solar system, you need to first determine how much power you need. Calculate the total watt-hours of energy you need per day. This will depend on the size of your system, the type of equipment you are powering, and the amount of sunlight available in your area.
2. Determine the battery type: Next, you need to determine the battery type that will best meet your needs. Different battery types have different capacities, so it's important to choose the right one for your system. The most common types of batteries used for solar systems are lead-acid and lithium-ion.
3. Calculate the battery capacity: Once you've determined the type of battery you need, you can calculate the battery capacity. To do this, you need to know the battery's voltage and amp-hour capacity. Multiply the battery's voltage by its amp-hour capacity to get the total watt-hours of energy it can store.
4. Calculate the battery size: Finally, you need to determine the size of the battery you need. Divide the total watt-hours of energy you need per day by the total watt-hours of energy your battery can store. This will give you the number of batteries you need to meet your energy needs.
How much energy can a solar battery store?
The amount of energy that a solar battery can store depends on the size and type of battery. Solar batteries typically range in capacity from 10 kWh to 20 kWh.
Which capacity of solar battery should I choose?
The capacity of a solar battery you should choose depends on the size of your solar system and the types of appliances you plan to use. Generally speaking, the larger your solar system, the larger the capacity of the battery you should consider. Additionally, if you plan to use appliances that require a lot of energy, you should choose a higher capacity battery than if you were only using smaller items. It's also important to consider the efficiency of the battery and how long it will last, so it's best to do your research before making a purchase. Here we suggest low voltage wall mounted lithium battery 48v is okay for the capacity to use in the home solar system.
![]() |
![]() |

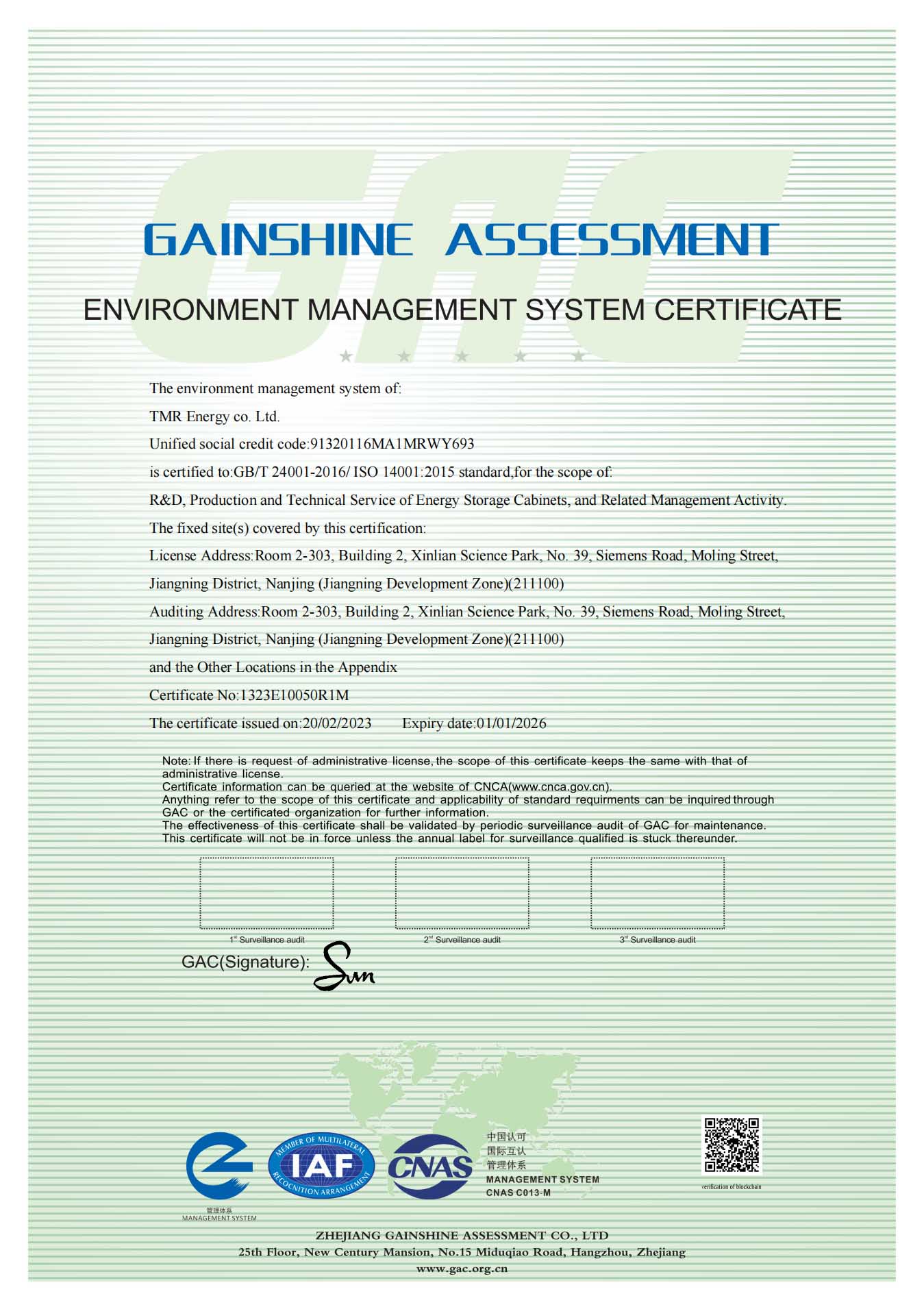

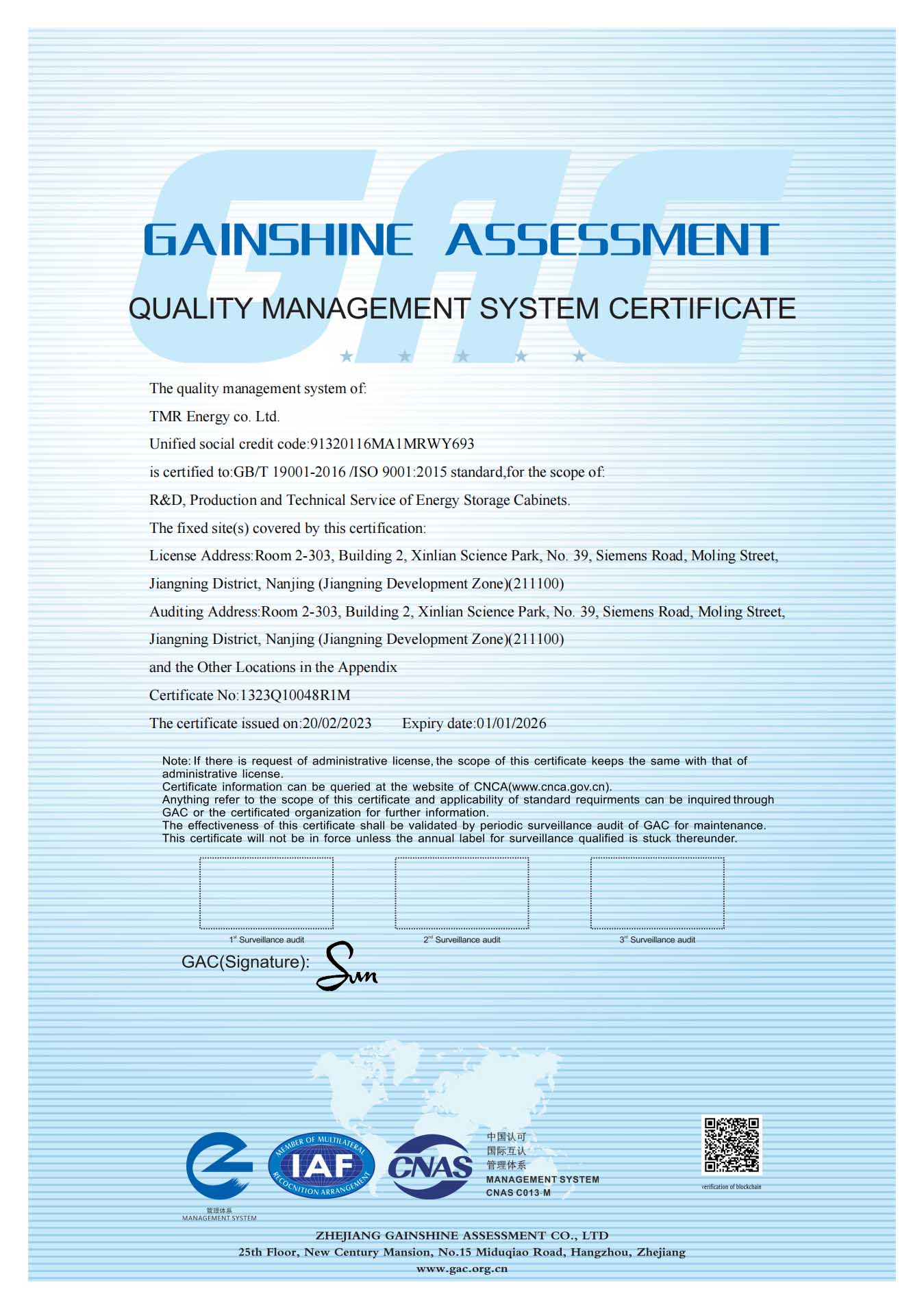

Quality management system certificate | Environment Management System Certificate |
